| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | QUINT-PS/3AC/24DC/ 5 |
| Configuration | Enclosed |
| Input Voltage | 347 VAC 3Ph ; 380 VAC 3Ph ; 400 VAC 3Ph ; 415 VAC 3Ph ; 440 VAC 3Ph ; 460 VAC 3Ph ; 480 VAC 3Ph |

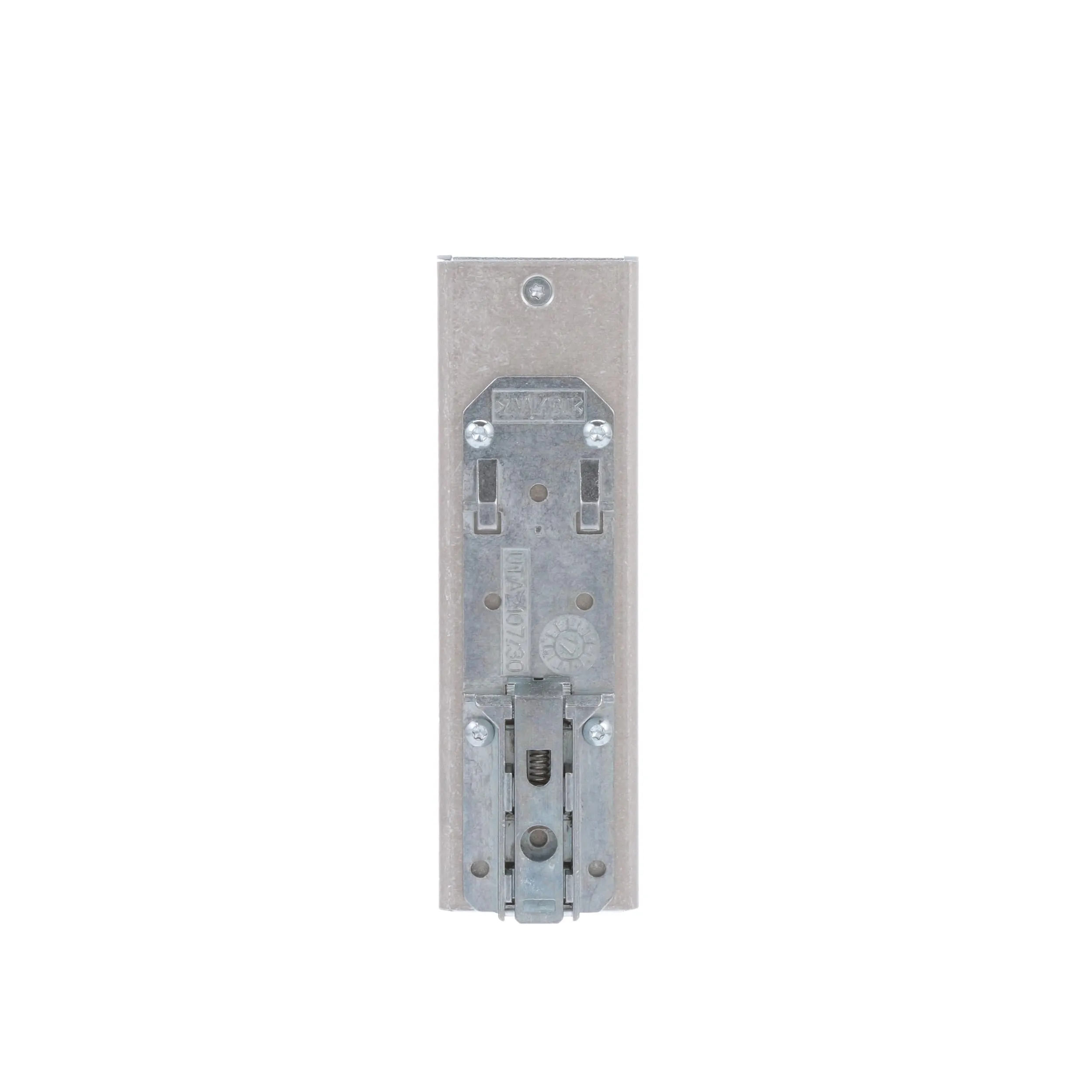

| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 5 A |
| Output Power | 120 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Series | |
| Type | Industrial |
| UPC Code | 4046356155441 |
| Voltage, Input Range | 320-575 VAC 3Ph |
Overview

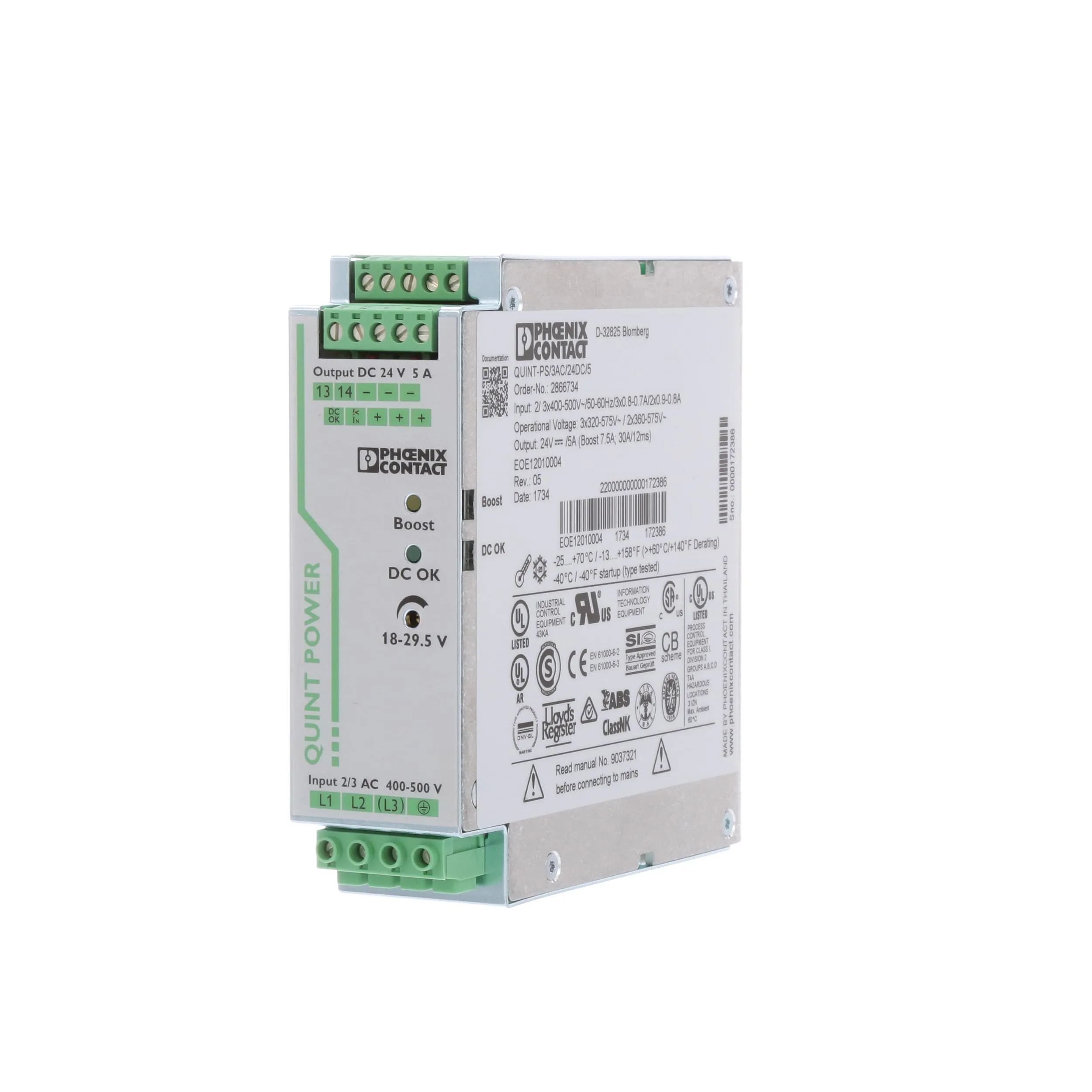

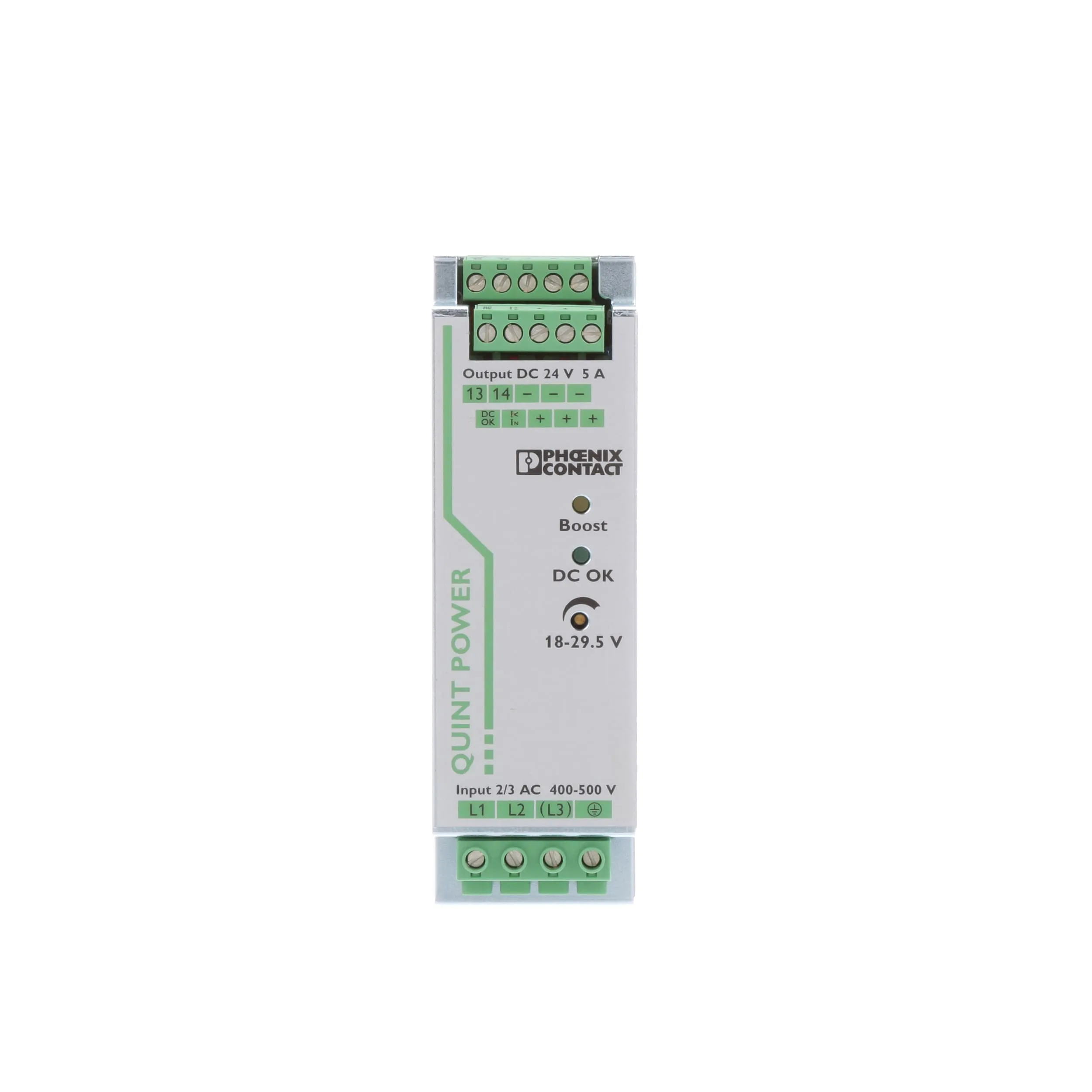

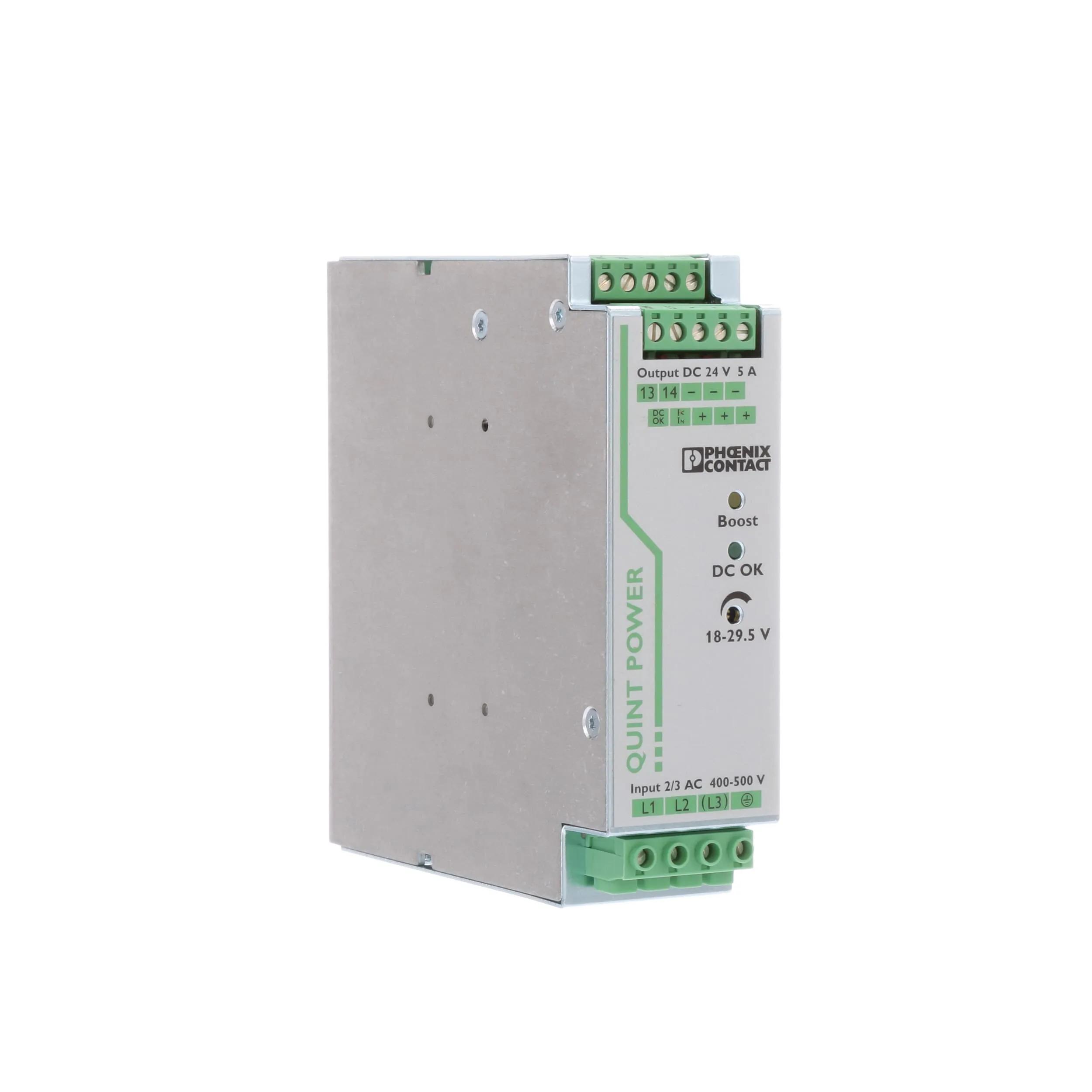

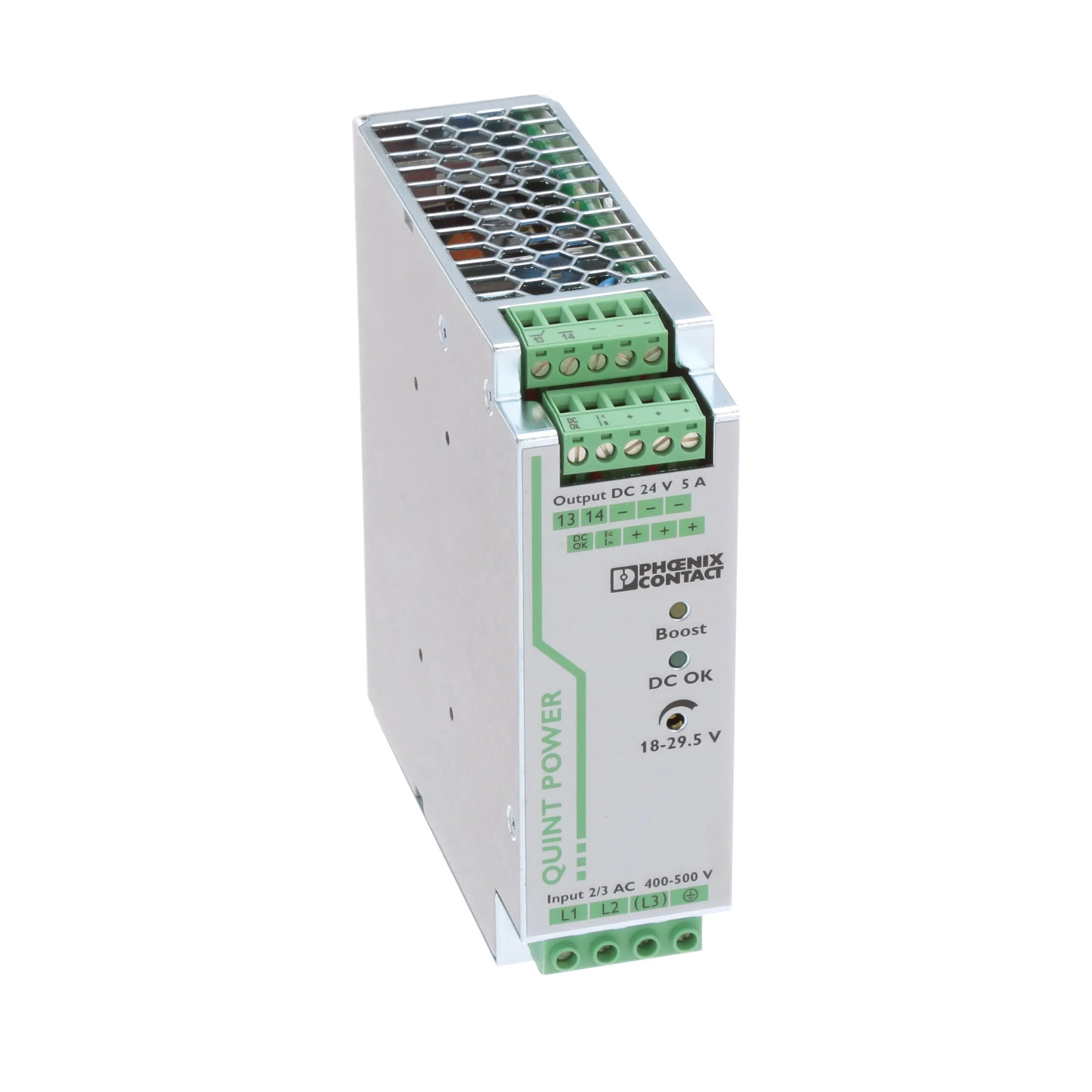

Phoenix Contact QUINT POWER Series - Single-Phase Primary-Switched Power Supply Unit:
For extreme operating conditions, use the ideally matched combination of PLUGTRAB SEC surge protection device and the powerful QUINT POWER power supply of the fourth generation. However, should your fourth-generation QUINT POWER become damaged in the first five years following purchase despite the use of this combination, you will receive a free replacement .
The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped. Preventive function monitoring diagnoses impermissible operating states and minimizes downtimes in your system. Remote monitoring is provided by an active transistor switching output and a floating relay contact. All devices are idling-proof and short-circuit-proof, and are available with a regulated and adjustable output voltage of 12, 24, and 48 V DC with output currents of 2.5, 5, 10, 20, 30, and 40 A. Power supply units for use in Ex zone 2, uninterruptible solutions, AS-i power supply units, and a QUINT diode complete this comprehensive product range.
Features:
With its wide-range input, single and three-phase versions, and international approval package, this solution is unrivalled
